Description

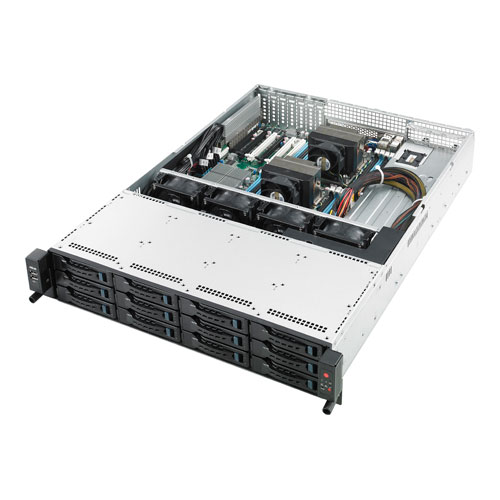

Based on the Intel® Socket R E5-2600 processor platform, the
Asus RS720 E7 RS12 server offers customers assured quality of
service with high memory capacity, outstanding power efficiency,
quad LAN, and mass storage. It also enables comprehensive server
management and flexible RAID, offering functional integration
that makes it an excellent all-round choice for any IT
application.
Additional Information
| Processor |
Single Processor E5-2620 v2 |
| RAM |
32GB |
| HDD Bays |
12 3.5 inch HDD BAY |
| Form Factor |
1U |
Key Specification
Processor / System Bus
|
QPI 6.4 / 7.2 / 8.0 GT/s
Intel® Xeon® processor E5-2600 product family (150W) *1
Intel® Xeon® processor E5-2600 v2 product family (150W)
*1
2 x Socket 2011
|
|
Core Logic
|
Intel® C602-A PCH
|
|
Memory
|
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB LRDIMM/Maximum up to 512GB
RDIMM/Maximum up to 128GB UDIMM
Memory Type :
DDR3 with ECC RDIMM 1066/1600/1333/800/1866*
DDR3 UDIMM 1333/1866/1600/1066*
LRDIMM 1066/1333/1866 DDR3*
Memory Size :
4GB, 2GB, 1GB, 8GB UDIMM
32GB, 16GB, 8GB LRDIMM
2GB, 4GB, 1GB, 32GB, 8GB, 16GB RDIMM
|
|
Storage
|
SATA Controller :
4 x SATA2 3Gb/s ports
Intel® C602-A
2 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
|
|
Expansion Slots
|
Low-profile
4* PCI-E x16 (Gen3 x16 Link) + 1*PCI-E x16 (Gen3 x8
Link)
Or
3* PCI-E x16 (Gen3 x16 Link) + 3*PCI-E x16 (Gen3 x8
Link)1* PIKE Slot for Stroage Enhancement
|
|
Networking
|
1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x
Mgmt LAN
|
|
Graphic
|
Aspeed AST2300 with 16MB VRAM
|
|
On Board I/O
|
1 x VGA port
1 x PS/2 keyboard port
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x PS/2 mouse port
5 x RJ-45 ports (One for ASMB6-iKVM)
|
|
OS Support
|
SuSE® Linux Enterprise Server 11.2 32/64-bit
CentOS 5.6 32/64-bit
RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
Windows® Server 2008 Enterprise 32/64-bit
VMWare ESX4.1/ESXi4.1*Subject to change without any
notice
Windows® Server 2008 R2
|
|
Management Solution
|
On-Board ASMB6-iKVM for KVM-over-IP
|
|
Regulatory Compliance
|
CE, BSMI, FCC(Class A), C-Tick
|
|
Dimensions
|
615mm * 444mm * 87.0mm
|
|
Weight
|
22Kg
|
|
Power Supply
|
770W (80+) (Gold level) 1+1 Redundant Power Supply
(following different configuration by region)
|
|
Environment
|
Operation temperature: 10℃ ~ 35℃ / Non operation
temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
|
|
Accessory Box
|
1 x Bag of Screws
1 x AC Power Cable
|
|
Optional Items
|
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
ASUS PIKE 2208 H/W RAID card (90SKC000-M00AN0)
ASUS PIKE 2308 RAID card (90SKC000-M08AN0)
|
Part List
|
Chassis
|
ASUS R20D 2U Rackmount Chassis
|
|
MB
|
ASUS Z9PE-D16 Server board
|
|
HDD Backplane
|
1 x RS720-E7/RS12 SAS/SATA Backplane (BP12LX-R20A)
(60SC01X0-SC0A03)
|
|
Front Panel Board
|
1 x Front I/O Board (FPB-R20A) (60SC00V0-SC0A02)
|
|
|
|
CPU Heatsink/ Cooler
|
1 x CPU Heatsink (13071-00090800)
|
|
Power Supply Unit
|
1 x 770W Redundant Power Supply (04G184004921)
|
|
HDD Tray
|
12 x Hot-swap 3.5″ HDD trays (13GS1I0AM010-1)
|
|
Fan
|
4 x System Fans (80mm x 38mm) (13G074154010)
|
|
Fan Holder
|
4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
|
|
Mounting Rails
|
1 x Rail kit
|
